Bosch 18V Battery Not Charging? Step-By-Step Fixes That Actually Work

⚠️ What Safety Precautions Should You Follow Before Testing?

Before attempting any fix, remember: safety comes first.

• Stop immediately if your battery is swollen, leaking, smoking, extremely hot, or smells burnt → place on a non-combustible surface and recycle safely.

• Work on a dry, non-conductive bench.

• Wear gloves and eye protection.

• Never short terminals; unplug chargers before cleaning or testing.

---

🔎 How Can You Perform Quick 60-Second Checks?

These fast checks solve many “not charging” cases without tools:

1. Look & Smell: swelling, cracks, corrosion, burnt odor → replace/recycle.

2. Wall Power: confirm outlet works (lamp/phone charger test).

3. Charger LEDs (no battery inserted): should light up normally.

4. Swap Test: test your charger with a known-good battery, and your battery with a known-good charger.

5. Clean Contacts: wipe with isopropyl alcohol (≥70%) and let dry.

6. Temperature Range: only charge between 5–40 °C (41–104 °F).

✅ If it charges now, you’re done. If not → continue with diagnostics.

---

🛠 What Are the Step-by-Step Diagnostic Methods?

Step 1 — How Do You Decode Bosch Charger LED Patterns?

• Solid red: charging normally

• Solid green: full OR battery fault

• Flashing red / alt red-green: error (temp out of range, contact fault, or BMS lockout)

• No lights: charger not powered or internal fault

👉 Always record LED behavior before further steps.

---

Step 2 — How to Verify Charger Output With a Multimeter?

1. Power charger with no battery inserted.

2. Probe DC output rails (consult charger label/pins).

3. Expect ~20–22 V DC for Bosch 18V chargers.

• ❌ No output or unstable voltage → replace/service charger.

• ✅ Normal → proceed to Step 3.

---

Step 3 — How to Measure Battery Open-Circuit Voltage (OCV)?

After a charge attempt + 10–15 min rest:

• 21.0–21.6 V: full

• 17–20.5 V: partial charge

• ≪17–18 V: deep discharge, cell fault, or BMS lockout

• ✅ Normal → Step 5 (Load Test)

• ❌ Very low → Step 4 (BMS Wake)

---

Step 4 — How to Perform BMS Wake or Recovery?

If the pack is deeply discharged:

1. Leave on charger 10–30 min.

2. Try briefly running it in a tool, then retry charger.

3. Ensure pack is within 5–40 °C.

❌ If still rejected → likely cell failure or bad BMS.

---

Step 5 — How to Run a Simple Load Test?

• Option A: Use 10 Ω, 10 W resistor (~2 A draw).

• Option B: Insert into drill/driver at idle, probe voltage.

Voltage Sag	Result
≤1.0 V	Healthy
1.0–2.0 V	Marginal
>2.0 V	Failing — replace

---

Step 6 — How to Isolate Charger vs Battery Fault?

• Charger works with many packs → your battery is bad.

• Battery charges fine on another charger → your charger is bad.

• Both misbehave (heat, smell, noise) → replace both.

---

Step 7 — What If You Need Advanced Testing?

• Open pack → inspect BMS PCB for scorched parts.

• Probe cell groups → expect ≤0.05–0.1 V difference.

• Cell replacement requires matched Grade-A cells + spot welding → not DIY-friendly; use rebuild service or replace.

---

📊 What Is the Bosch Battery Troubleshooting Flow?

flowchart TD
A[Bosch 18V Battery Not Charging] --> B{Check Power & Connections}
B -- Fixed --> Z[Problem Solved!]
B -- Still bad --> C{Clean Terminals}
C -- Fixed --> Z
C -- Still bad --> D{Read Charger LED}
D --> D1[No Lights: Charger Fault?]
D --> D2[Solid Red: Charging]
D --> D3[Flashing Red: Error]
D --> D4[Solid Green: Full or Fault]
D --> E{Swap Test}
E -- Other battery works --> F[Your Battery Faulty]
E -- Other charger works --> G[Your Charger Faulty]
F --> H[Try BMS Wake / Load Test]
G --> I[Replace Charger]
H --> J{Voltage Sag <2V?}
J -- Yes --> Z
J -- No --> K[Replace Battery]

---

📝 What Are the Most Common Symptoms and Fixes?

Symptom	Likely Cause	Fix
Charger flashes red	Pack temp out of range	Warm/cool pack
Stops charging early	High internal resistance	Load test; replace if sag >2V
No LEDs	Outlet/charger failure	Test outlet/replace charger
OCV <17V	Deep discharge	BMS wake, else replace
Green light but no use	Pack fault	Replace battery

---

🔄 When Should You Replace Battery or Charger?

Replace battery if:

• Swollen, leaking, burnt smell

• OCV ≪17–18 V after wake attempts

• Load sag >2 V

• Multiple chargers reject it

Replace charger if:

• No/erratic output

• Errors with many good batteries

• Physical/thermal damage

💡 Always use OEM or certified replacements with quality cells & BMS.

---

🛡️ How to Prevent Bosch Battery Charging Problems?

• Clean contacts monthly with isopropyl alcohol.

• Store at 30–50% charge in cool, dry place.

• Let packs cool before charging.

• Rotate multiple batteries to reduce stress.

• Use chargers matched to your Bosch family (ProCORE vs Standard).

---

❓ FAQ About Bosch 18V Battery Charging Issues

Q: My charger alternates red/green with one battery — is it dead?
A: Most likely yes (BMS fault or cell imbalance). Try cleaning & BMS wake, else replace.

Q: Battery shows 21V but dies quickly — charger fault?
A: No — that’s high internal resistance. Confirm with load test.

Q: Can I jumpstart a dead Bosch 18V battery?
A: Don’t force-charge. Try safe BMS wake. If still <17 V, recycle/replace.

---

✅ Conclusion: Repair or Replace?

Follow this diagnostic flow:

• Start with safety check → outlet/contacts → LEDs → OCV → BMS wake → load test

• Replace only what fails isolation.

👉 Still stuck? Share your charger + battery model & LED behavior in comments — we’ll help diagnose.

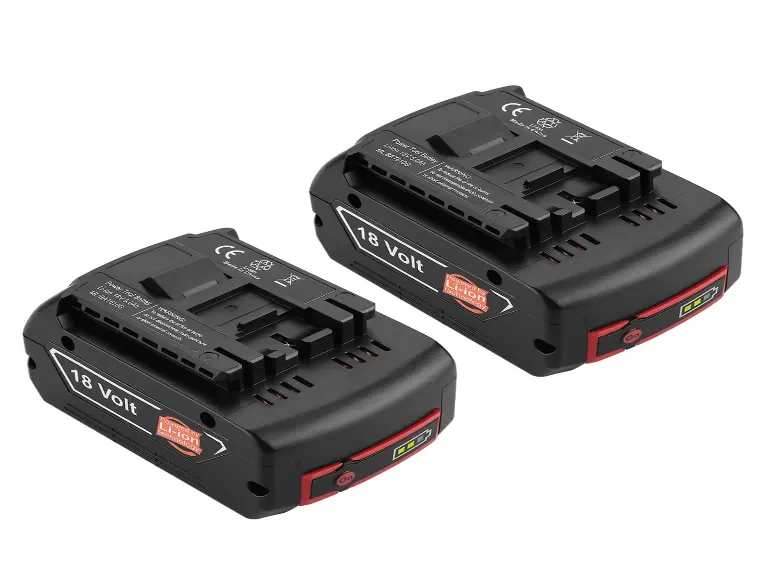

👉 Need a new pack? Check our Bosch 18V compatible batteries — built with Grade-A cells & intelligent BMS, at a fraction of OEM cost.
